Gimbal Expansion Joint

What is Gimbal Expansion Joint?

Design to absorb the system thurst and torsional twist while allowing angulation in any plane. This is a single expansion joint designed to permit angular rotation in any plane by the use of two pairs of hinges affixed to common floating gimbal ring.

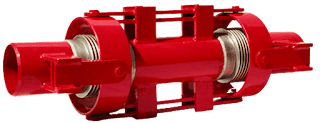

Double Bellows Gimbal Expansion Joints with weld ends

Gimbal Expansion Joints are used to absorb angular rotation in any plane direction, using two pairs of hinges attached to a common floating gimbal ring. This type of construction provides a close control over the movement imposed up on the bellows and also supports the dead weight of the pipe. The wind and shear loads are also taken care of by the gimbal structure. Gimbal bellows joints are designed to absorb the full pressure thrust load of the expansion joint and thus guard the adjacent equipment from damage due to thrust loading. Gimbal bellows joints are not limited to a single plane, they provide greater usability.

Gimbal Expansion Joint with Weld Ends

Gimbal Expansion Joint is the most reliable expansion joint since it is capable of absorbing angular motion in all the planes direction. Although single bellows joints can be used in isolation the most common applications use a pair of gimbal bellows joints to absorb a complex multi - plane motion in a piping system

Single Gimbal Bellow

The use of gimbal bellows joints results in the best system which eliminates the effects of thermal growth and lowers both reaction forces and reduces the installation costs. Expensive main anchors are eliminated and only minimal guiding is required.

Benefits of Gimbal Expansion Joint

Absorbs angular movements in all plane direction and angular rotations, or any combinations of these.
Eliminates pressure thrust loads.
Positive control over the movements.
Supports dead weight of the intermediate piping.
Transmits external loads like wind loading and shear loading.

Comments

Flexpert Bellows Pvt Ltd

Our Company Profile Flexpert Bellows is a leading and manufacturer and global exporter of stainless steel expansion bellows & metal expansion joints offering prime quality joints at competitive terms. Flexpert Bellows is The QUALITY LEADER, On a Global Scale Incorporated by a team of technocrats, FLEXPERT BELLOWS PRIVATE LIMITED in a short span has established itself as a reputed manufacturer and exporter of flexible piping products including metal bellows, expansion joints and hoses of metal, fabric and rubber. The objective of the company has been to produce high quality of products at competitive rates, which has been achieved through a thorough partnership with our clients. Our skilled staff specializes in piping technology and has an in-depth understanding of critical nature of the applications. Our extensive background in the design, engineering and production of metal bellows, expansion joints, fabric and rubber joints, compensators and hoses enables us in meetin...

What are metallic bellows and types of Bellows?

What are metallic bellows? The main element of the expansion joint, which consists of one or more convolutions, is called bellows . The performance of the bellow depends upon the geometric bellows. Hence the type of raw material and its properties, its geometric features, other influencing designing factors, construction or manufacturing method, and performance testing bellows are necessary to study. What are the types of bellows? Formed Bellows These types of Expansion Joint used in the low-pressure system they are cost-effective and can be a substitute to the system Fabricated Bellows Formed from a thin wall tube, formed bellows contains only longitudinal welds, and exhibits significant flexibility Formed Bellows shapes are made from single or multiply plies of suitable material (usually stainless steel) ranging in thickness from .004" to .125" and greater, and in diameter of 3/4 to over 12 ft

Externally Pressurized Expansion Joint | Flexpert Bellows

Externally Pressurized Expansion Joint Externally Pressurized Expansion Joint is the perfect solution when the expansion joint must absorb large axial movement under High Pressure. Externally Pressurized Expansion Joints Absorbs large axial movements without squirm. Eliminates main anchors. Minimum guiding required for externally pressurized expansion joints Heavy duty construction for bellow protection. The Externally Pressurized Expansion Joints provide very low turbulence to f the flowing medium due to the fact that the internal surface of pipeline itself works as the liner for this expansion joint. As the thermal expansion in externally pressurized expansion joints occur the bellows element brining the internal guide rings closer reducing the gap between them and then medium can flow through this joints as if it were not there.
