Flexible bellows expansion joint – Flexpert Bellows Pvt Ltd

Meaning of Bellows –

It is a device for producing a well built current of air, consisting of a chamber that can be expanded to draw in air through a valve and contracted to expel it through a tube.

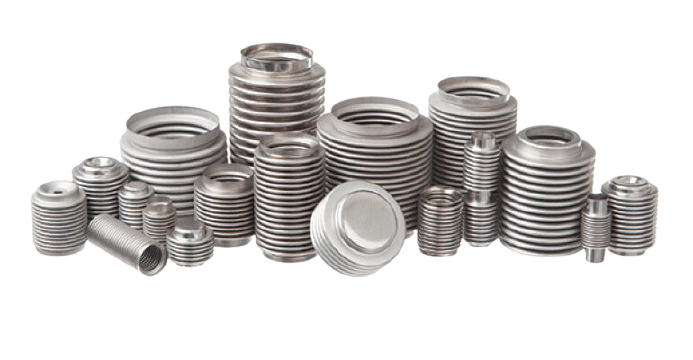

Bellows system is specializing in manufacturing multi ply bellows with high life cycle.

What is the purpose of bellows?

The Basic function of a Bellows is to contain air to expel it at a certain pressure and direction to achieve different purpose, It is deformable container or not. Than when compressing it and reducing its actual volume, the air that was kept inside comes out through nozzle or outlet conduit to achieve different purpose.

What is the use bellows in piping?

Expansion Joints (Bellows) Expansion joints is installed in a piping system to absorb the vibration and shock. They also have an advantage such as reducing the noise and compensate caused by misalignment. Expansion joints can also be designed for thermal expansion in hot applications.

What sounds does a bellows make?

The sound does a Bellows make are snorts, coughs, roars & grunts. These bellows have been compared as revving up and old Chevy truck.

What are the benefits of bellows in expansion piping?

Weight reduction

Cost reduction

Better flexibility of piping

We Manufacture best in class bellow Expansion Joint at Flexpert Bellows Pvt Ltd

Comments

Failure analysis of Expansion Joint ( Bellows)

What is the Failure of bellows? Improper installation Improper anchoring and supporting of piping system Bellows corrosion – both internal and external System overpressure during operation or testing Bellows vibration; mechanical or flow-induced resulting high cycle, fatigue caused by excessive vibration from connected equipment or the turbulent flow on from very high velocity Excessive bellow deflection: Axial, lateral, and angular movement greater than design valve torsion of the bellows What happens when expansion joints fail? Metal Expansion Joints include bellows which work like a sealed spring to allow expansion, flexibility, and movements. Without Bellows, pipes and hoses could crack and damage the various pressure compressing your entire system.

Externally Pressurized Expansion Joint | Flexpert Bellows

Externally Pressurized Expansion Joint Externally Pressurized Expansion Joint is the perfect solution when the expansion joint must absorb large axial movement under High Pressure. Externally Pressurized Expansion Joints Absorbs large axial movements without squirm. Eliminates main anchors. Minimum guiding required for externally pressurized expansion joints Heavy duty construction for bellow protection. The Externally Pressurized Expansion Joints provide very low turbulence to f the flowing medium due to the fact that the internal surface of pipeline itself works as the liner for this expansion joint. As the thermal expansion in externally pressurized expansion joints occur the bellows element brining the internal guide rings closer reducing the gap between them and then medium can flow through this joints as if it were not there.

Gimbal Expansion Joint

What is Gimbal Expansion Joint? Design to absorb the system thurst and torsional twist while allowing angulation in any plane. This is a single expansion joint designed to permit angular rotation in any plane by the use of two pairs of hinges affixed to common floating gimbal ring. Gimbal Expansion Joint Double Bellows Gimbal Expansion Joints with weld ends Gimbal Expansion Joints are used to absorb angular rotation in any plane direction, using two pairs of hinges attached to a common floating gimbal ring. This type of construction provides a close control over the movement imposed up on the bellows and also supports the dead weight of the pipe. The wind and shear loads are also taken care of by the gimbal structure. Gimbal bellows joints are designed to absorb the full pressure thrust load of the expansion joint and thus guard the adjacent equipment from damage due to thrust loading. Gimbal bellows joints are not limited to a single plane, they provide greater usability. Gimb...
