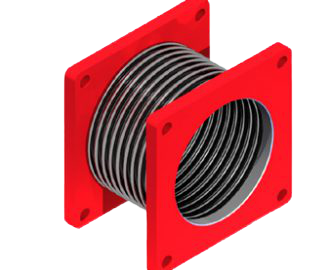

What is exhaust gas expansion joint?

Exhaust gas expansion joints are designed to absorb heat induced in pipe and exhaust system expansion and contraction

Flexpert bellows has create wide range of exhaust gas expansion joints that are designed to high movements absorption with low spring rates for overall best performance

What is the advantage of exhaust expansion joint?

· Gas - tight and resistant to corrosion and temperature

· Absorbs vibrations

· Light weight reducing loads on hangers and pipe supports

· Very low spring rates, and high flexible performance to reduce the load on hangers and pipe supports

· Economical

Application of exhaust expansion joint

Exhaust gas expansion joint are used in wide range of applications, such as gas turbine exhausts, power units, generator sets, marine propulsion systems
Customized expansion joints can be designed and built for any specific requirement and application

What are the requirements of using expansion joint?

High flow velocity often requires inner sleeves
Exhaust gas bellows are exposed to vibration that should be designed to ensure that the natural frequency and any harmonics do not coincide with the frequencies of the exhaust system
