Flexpert Bellows Pvt Ltd is established in the year 1992, exclusively with the prime object to manufacture the world — class expansion bellows, has now become a recognized and globally accepted provider of flexible piping systems exporting to more than 40 +countries with a wide installation base covering almost all industrial sectors including and as diverse as nuclear power and space programs.
Flexpert Bellows Pvt ltd
Our products are designed and customized with the professional engineer with well equipped and latest used machine in our factory. We have well professional staff of maintaining our quality of products.
Our Products
Axial Expansion Joint
Axial Expansion Joints are the simplest type of expansion joints using a single bellows unit. The thermal expansion of a straight pipe line section between two fix points can be absorbed by axial expansion joints with a relatively compact build-in length.

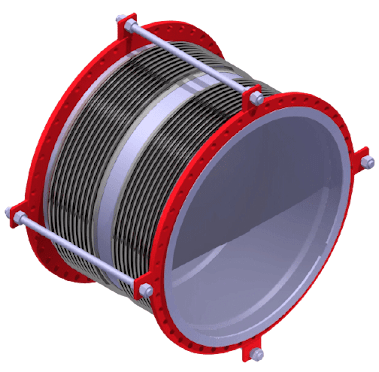

Lateral Expansion Joint
The Lateral Expansion Joints also called as Tied Universal or Tied Lateral Expansion Joints and are used to absorb lateral deflection and angular rotation.
Hinged Expansion Joint
Hinged Expansion Joints are used to absorb angular movement when it occurs in only one plane. They are also called as Angular Expansion Joints or Hinged Bellows.
Universal Expansion Joint
The Universal Expansion Joints consist of two bellows elements joined together by a common spool piece so it is also called as Double Bellows Expansion Joint or Universal Bellows.
Gimbal Expansion Joints
Gimbal Expansion Joints are used to absorb angular rotation in any plane, using two pairs of hinges attached to a common floating gimbal ring.
In-line pressure balanced expansion joints
In-line pressure balanced expansion joints are designed to absorb externally imposed axial movement without imposing pressure loading on the system.
Externally Pressurized Expansion Joint
An Externally Pressurized Expansion Joint takes pressure from the outside of the bellows element rather than on the inside as in a conventional expansion joint
Elbow Pressure Balanced Expansion Joints
An Elbow Pressure Balanced Expansion Joints is designed to absorb externally imposed axial movement without imposing pressure loading on the system.
Pump Connector
The basic function of bellows flexible Pump Connector Expansion Joint is to provide piping system with the required flexibility and pump vibration isolation to absorb vibrations and noise transmitted by mechanical equipment , compensate for thermal growth and work as stress free pump connectors to the connected equipment like Pumps and Compressors.
Exhaust Bellows Expansion Joints
Exhaust bellows expansion joints are installed very close to the engines and are subjected to severe conditions of temperature, movements and vibrations.
Rectangular Expansion Joints
Rectangular Expansion Joints are manufactured to individual sizes and functional requirements by combining standard corrugated elements and corner configurations with self developed fabricating methods to be used as Duct Expansion Joints.
Heavy Wall Expansion Joints
Thick Wall Expansion Joints are the simplest type of expansion joints. They are compact requiring virtually no additional space beyond the length of bellows and weld ends or flanges for installation.
Bellows Elements Expansion Joints
Bellows Elements Expansion Joints are exclusively manufactured to meet the customer drawings and are provided with collars at both ends.
Bellows Type Dismantling Joint
The Flexpert Bellow type Dismantling Joints are designed to enable mounting and dismantling of valves from pipelines.
To know more about us visit our website now:
